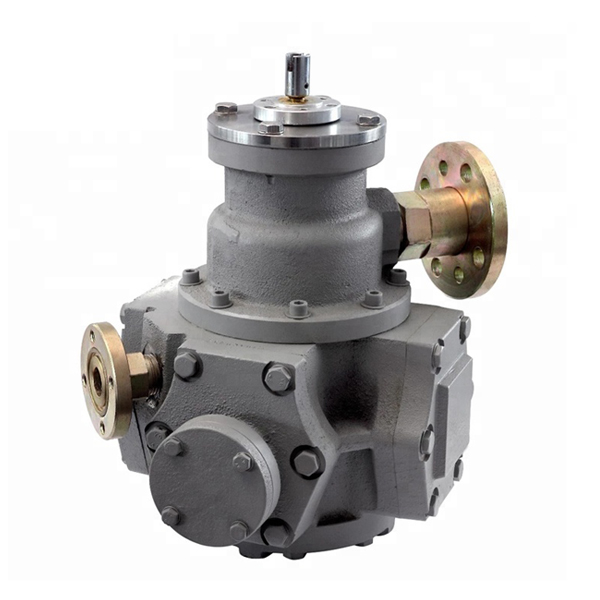

LPG flowmeter

Your position: Home > Clean Energy Fueling Products > LPG Dispenser Accessories

Description

LPG Meter is speically designed for LPG Dispensers to measure LP Gas liquid phase. Our PTB approved LPG meter has proven its quality over 30 years has been used by many dispenser manufacturers and Europump.

LPG Meter Technical Specifications

Fluid	LPG liquid phase
Number of pistons	4
Nominal unit displacement	0,125 liters
Nominal Volume per turn	0,5 Liters
Accuracy	± 0,5 %
Minimum Flow	5 liters/min(1 1/2 gallons/min)
Maximum Flow	50 liters/min(12 gallons/min)
Weight	21 kg

Product Application

LPGFM1 Flow Meter is designed with international advanced standards based on customers requirements. It is using cast iron body,stainless steel cylinder liner,and four-pistoned construction with check valve inlet, high strength,high wear ability ,and high accuracy, long service lift . it can be used for gasoline, diesel, kerosene or compound of them.

2. Working Principle: Petroleum flows out of pump flows into flow meter, it causes a angular deviation to the flow meter transmission shaft, and the pulse generating gadget gives out pulse signal to indicate the volume of the liquid.

Specifications
1.Consistency
2.High performance
3.Low maintenance

Feature:
LPG flow meter adopts advanced technology, which can be widely used on different gasoline dispensers.
This product has advantages as long using term, high precision, firm structure etc.
It can be the best choice of gasoline dispenser component.

Specifications:
1.Max Working Pressure: 1.8MPa
2.Flow Rate: 5 to 60L
3.Discharge rate per revolution: 0.5L/r
4.Adjustable Minimum Volume: 0.1%
5.Accuracy: ±0.5%
6.Repeatable Tolerance: ≤0.25%
7.Package: 1pcs/carton
8.Net Weight: 12.5kg
9.Gross Weight: 13.5kg
10.Dimension: 280×260×360mm

Max. Working Pressure	1.8MPa
Flow Range	5-60L/min
Discharge Rate Per Revolution	0.5L/R
Adjustable Minimum Volume	0.1%
Accuracy	±0.5%
Repeatable Tolerance	≤0.25%
Dimension	32x27x36cm
Net weight	31kg
Gross weight	35kg
Package	1pc/CTN

LPG flow meter is in construction of stainless steel bush and four-piston positive displacement with check valve built in, with advantage of high reliability, good wearability, prescise measure, and long life .
