7H Series Of Automatic Shut-Off Nozzles
product presentation:
For Heavy-Duty, High-Flow Truck stop, Bus and Fleet Service If you operate a full-service truck-stop, refuel your own fleet, or manage a card-lock refueling location, the low cost, long life and durability of the AISTAR 7H high flow nozzle can help increase your productivity, sales and profits.

Materials:
Body: Aluminum
Seals: Buna-N, Viton
Main stem seals:Viton Cased Oil Seal / Graphite with Teflon
Main stem: Stainless steel
Package:
Net Weight: 1.6kg/pc
Gross Weight: 1.9kg/pc
45x40x32.5cm3/case of 10pc



Features & Benefits:
♦ AISTAR 7H Flow rate: 0-120L/m(1-3/16")
AISTAR 7H Flow rate: 0-90 L/m (1")
Working Pressure: 0.18Mpa

♦ AISTAR 7H Automatic Nozzles
for diesel, kerosene and all kinds of gasoline service.
♦ Even, smooth, spray pattern- minimizes diesel foaming and false shut-offs.
♦Three position hold-open device- one finger control of hold-open mechanism means easy setting of flow rate.
♦ Easily replaced spout- simply removes three screws. Replacement kits are available from AISTAR.
♦Spout retaining ring- adds extra measure in securing nozzle spout in fill pipe.
♦ Dual poppet valves- easy to open nozzle against high pressure.
♦ Full hand insulator- protects both nozzle and vehicle, and insulates users' hands.
♦Available Colors - color chart on inside back cover
♦ Selective Spout With Flowlock- designed to shut-off automatically when the spout is tipped up, limiting spillage and " spit"
♦ 100% Factory Tested.



Warning:
Do not use AISTAR 7H Nozzles with a hold-open device on prepay self-service installations.Using foreign objects to hold-open automatic nozzles could result in failure to shut-off and personal injury.

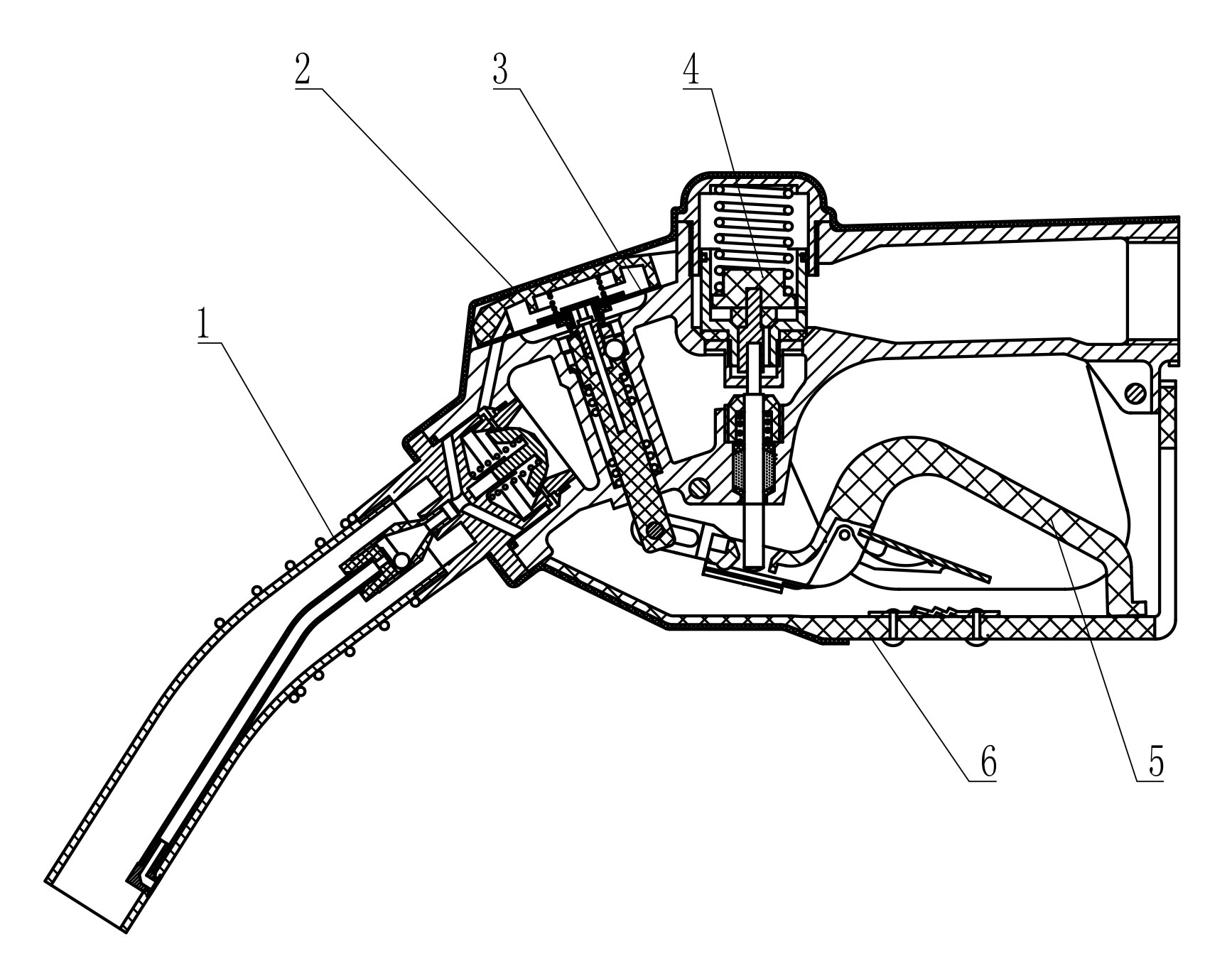

AISTAR 7H Nozzle Shown



► Important:

AISTAR Products should be used in compliance with country, province and local Laws and regulations. Products selection should be based on physical specifications and limitations and compatibility with the environment and materials to be handled. AISTAR Makes no warranty of fitness for a particular use. All illustrations and specifications in this literature are based on the latest products information available at the time of publication, AISTAR reserves the right to make changes at any time in price, materials, specifications and models and to discontinue models without notice or obligation.



7HB Series Automatic Pressure-Sensitive Nozzles
product presentation:
For Heavy-Duty, High-Flow Truck stop, Bus and Fleet Service If you operate a full-service petrol station,refuel your own fleet,or manage a card-lock refueling location, the low cost, long life and durability of the AISTAR 7HB high flow nozzle can help increase your productivity,sales and profits.

Materials:
Body: Aluminum
Seals: Buna-N, Viton
Main stem seals:Viton Cased Oil Seal / Graphite with Teflon
Main stem: Stainless steel
Package:
Net Weight: 1.6kg/pc
Gross Weight: 1.9kg/pc
45x40x32.5cm³/case of 10pc



 Features & Benefits:
♦ AISTAR Flow rate: 0-120L/m(113/16")
AISTAR 7HB Flow rate: 0-90 L/m (1")
Working Pressure: 0.18Mpa
♦ AISTAR 7HB Automatic Nozzles
for diesel, kerosene and all kinds of gasoline service.
♦ Even, smooth, spray pattern- minimizes diesel foaming and false shut-offs.
♦ Exclusive Pressure Detecting Module- the main valve can keep closed, even when held without enough pressure in hose.
♦ Three position hold-open device- one finger control of hold-open mechanism means easy setting of flow rate.
♦ Easily replaced spout- simply removes three screws. Replacement kits are available from AISTAR .
♦ Spout retaining ring- adds extra measure in securing nozzle spout in fill pipe.
♦ Dual poppet valves- easy to open nozzle against high pressure.
♦ Full hand insulator- protects both nozzle and vehicle, and insulates users' hands.
♦ Available Colors- color chart on inside back cover
♦ Selective Spout With Flowlock - designed to shut-off automatically when the spout is tipped up, limiting spillage and "spit”
♦ 100% Factory Tested.
Warning:
Do not use AISTAR 7HB Nozzles with a hold-open device on prepay self-service installations.Using foreign objects to hold-open automatic nozzles could result in failure to shut-off and personal injury.

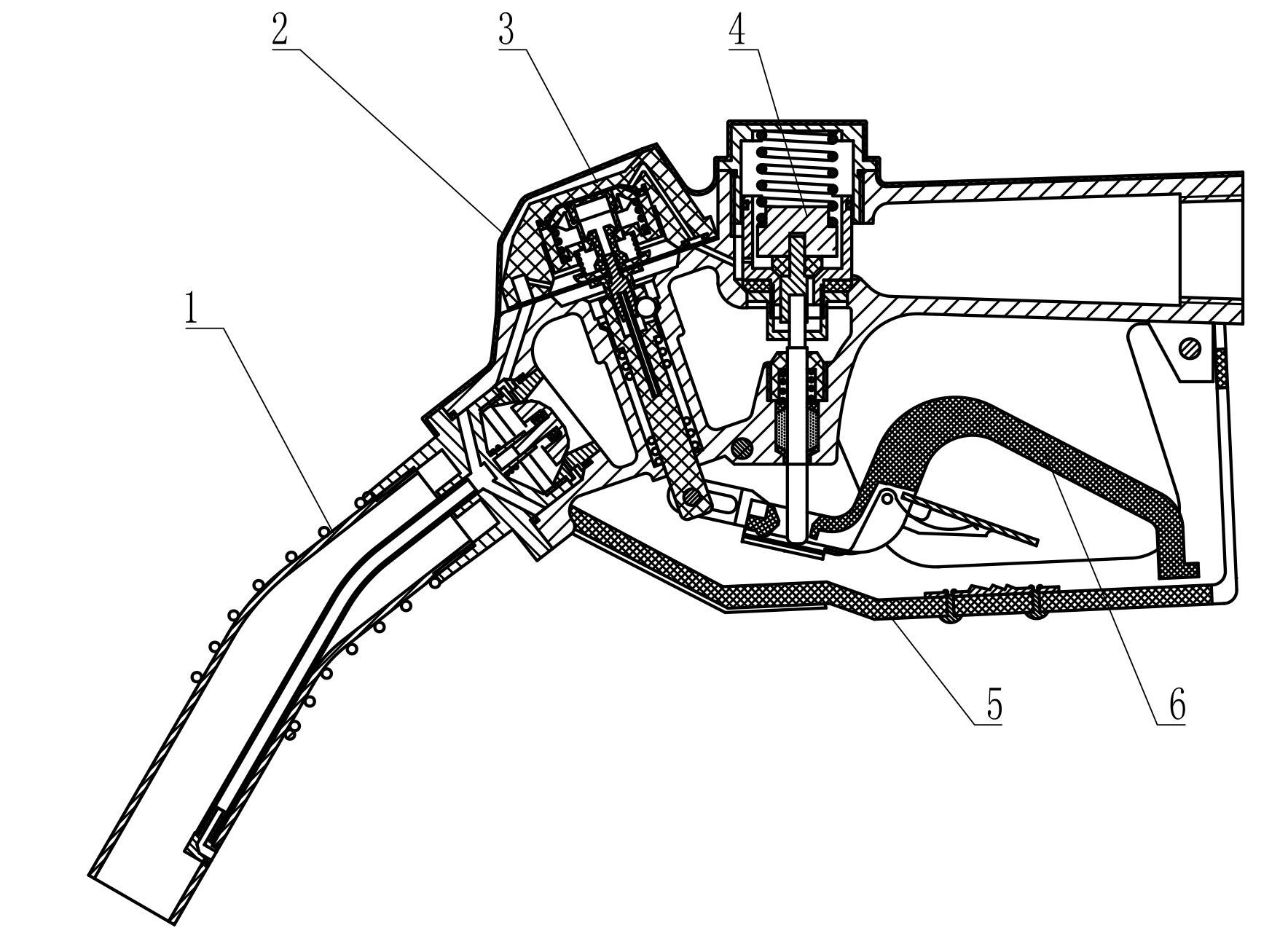

AISTAR 7HB Nozzle Shown




 Important:
AISTAR Products should be used in compliance with country, province and local Laws and regulations. Products selection should be based on physical specifications and limitations and compatibility with the environment and materials to be handled. AISTAR Makes no warranty of fitness for a particular use. All illustrations and specifications in this literature are based on the latest products information available at the time of publication, AISTAR reserves the right to make changes at any time in price, materials, specifications and models and to discontinue models without notice or obligation.
