Ball Valves

Your position: Home > Chemical & Industrial Products > Ball valve

Please select the information you wantX

Size:
3/4'' 1'' 1-1/4'' 1-1/2'' 2'' 2-1/2'' 3'' 4''
Thread:
British standard (BSP or BSPT) American standard (NPT)
Ships From:
China

Description

Ball Valves are used throughout fueling systems where a shut-off point is desirable to isolate a section of the piping system. These full-port, forged brass valves feature a manual open-close arm and a quick quarter-turn handle, allowing easy shut down of your AST or UST system. Compatible with gasoline, alcohol fuels, diesel and MTBE. Available with Lockable Handle (LH).

Materials

Body: brass
Ball: hard chrome plated
Seal: Teflon^®

Features & Benefits

Pressure rated to 600 psig (41 bar) WOG
Blowout-proof stem
Chrome-plated brass ball
Secondary O-Ring stem seal
PTFE seats, thrust bearing and stem packing

Listings and Certifications

Ordering Specifications

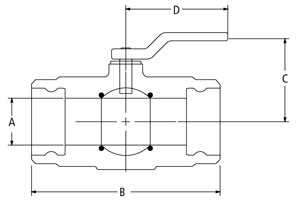

Model #	Size (in.)	Dimensions (in.)
Model #	Size (in.)	A	B	C	D
21BV-0050	1/2	0.59	2.28	1.81	3.35
21BV-0075	3/4	0.78	2.51	2.36	4.29
21BV-0100	1	0.98	2.97	2.52	4.29
21BV-0150	1-1/2	1.57	3.87	2.72	5.63
21BV-0200	2	1.96	4.29	3.03	5.63
21BV-0200SS*	2	1.96	4.80	3.66	7.09
21BV-0300	3	3.15	6.10	5.12	8.35
*SS denotes Stainless Steel.
202233	Lockable Handle Kit for 1/2" Model (Handles sold separately)
202234	Lockable Handle Kit for 3/4" and 1" Models (Handles sold separately)
202235	Lockable Handle Kit for 1-1/2" and 2" Models (Handles sold separately)
