LPG nozzle

Stainless Steel pistons for improved durability Reduced volume of residual vent gas for improved environmental
Item Code: AI4-3521
    Please select the information you wantX
  • Size:
    3/4 inch 1 inch
  • Thread:
    British Standard (BSP or BSPT) American Standard (NPT)
+
-
Units
  • Description

LPG nozzles

  • Stainless Steel pistons for improved durability
  • Reduced volume of residual vent gas for improved environmental

    Materials

  • Body: aluminum
  • Internal Components: brass and steel
  • Seals: specially formulated polymers and elastomers specific to LPG applications
  • External Components: brass, stainless steel, anodized aluminum
  • Features & Benefits

  • User Friendly Single-Action Operation – Entire fueling operation is initiated by simply engaging nozzle to the receptacle with a single squeeze of the hand.
  • Hammer-Lock Technology – Maximum durability. Designed specifically for frequent coupling and uncoupling.
  • Ergonomic Design – Insulated handle protects operator from temperature effects created by high flowing LP gas. Minimal force required to engage nozzle.
  • Durable Construction – Heavy-duty brass, aluminum and stainless-steel construction provides excellent corrosion resistance in the harsh fueling environment.
  • Ease-of-Use – Incorporates a single plane 360 degree inlet swivel.
  • Safety – Will not dispense gas until securely engaged onto an appropriate receptacle. Once engaged, it will not disengage until released by operator.
  • Individually Leak Tested and Inspected with Traceable Serial Numbers.
  • Replaceable Rubber Cover – Deflects venting LP gas away from operator's hand.
  • Ordering Specifications

    Product No. Inlet Thread Size Service Pressure Weight
    OT300 1" BSPP 350 psi 24 bar 3.08 lbs.
    (1.40 kg)
    OTA-300BRASS 1" BSPP 350 psi 24 bar
    OTA-300A 1" BSPP  350 psi  24 bar
    OTA-300BA (Brass) 1" BSPP 350 psi 24 bar
    OT321 3/4" - 14 BSPP Female x 1" - 11 BSPP Male
    OT420 Replacable Rubber Cover

    All LPG Autogas Nozzles are available in BSPP threads.

    Technical Specifications

  • MAWP: 350 psi (24 bar)
  • LPG Discharge on Disconnect: 1 cm3 of liquid LPG
  • Weight: 3.08 lbs. (1.40 kg)
  • Locking Release: Trigger on lever

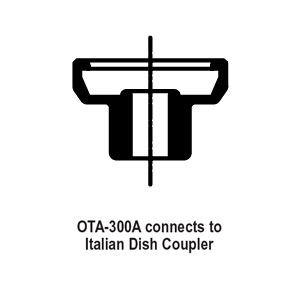

  • Coupling Style: Italian Style
  • Temperature Range: -40° F to 185° F (-40° C to 85° C)

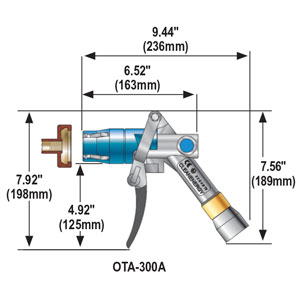

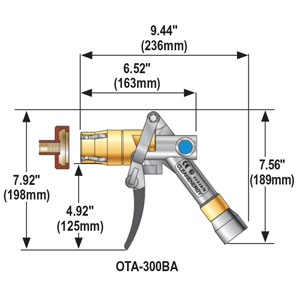

  • Dimensions
