OPW Original 12VW Vacuum-Assist Nozzles

The OPW 12VW Series automatic nozzles are one of OPW's premium nozzles for Vacuum-Assist vapor recovery systems. Designed with an integrated vapor-valve, they are certified on the most used vapor recovery systems in the world. The 12VW is the most trusted
Item Code: AI6-0944
    Please select the information you wantX
+
-
Units
  • Description

Features

Safe for Use
  • UL listed for use in gasoline, diesel, and up to 10% ethanol blends.
  • Prevents gasoline spills in prepay or card lock systems utilizing OPW's unique No Pressure – No Flow Device. – The nozzle cannot be opened until the pumping system is pressurized, and closes automatically when the pressure is removed.
  • Prevents consumer from jamming the nozzle in an open position – Blocker on lever guard.
  • FlowLock™ allows nozzle to shut-off when falling out of a vehicle, and tipped up limiting spillage and unsafe conditions.
  • Vapor Escape Guard (VEG) improves vapor collection.
  • Lever-activated vapor valve only opens when product is flowing controlling the amount of vapors collected from the vehicle.
Durable & Long Lasting
  • Cycle tested and proven to last longer than 1 million cycles - Better than any other nozzle available on the market today*
  • Stainless steel insert in spout to last longer then standard aluminum only spouts.
  • Durable lever guard that won't scratch your customers' vehicles – Made from Duratuff®.
  • New hold-open clip spring lasts longer then previous designs.
  • Internal vapor path, no replacement parts needed.
Appealing to Customers
  • Easy to use – Utilizing Accu-Stop® to-the-penny Flow Control Technology.
  • Attractive 2-Piece Newgard™ Hand Insulator is the most comfortable nozzle in the industry to use.
  • Convenient – One-finger hold-open clip that is easy to set the flow rate (not on all models)
Design working pressure
  • 50 psi (3.45 bar) maximum pressure.

* OPW internal lab testing results as of August 2010.

Materials

  • Body: Aluminum
  • Lever & Lever Guard: Duratuff®
  • Packing: Graphite with Teflon®
  • Disc: Viton®
  • Spout: Aluminum w/ Stainless Steel tip
  • Inlet Size: M34 Metric
  • Weight: 3.1 lbs. (1.41 kg) each; 31.0 lbs. (14.1 kg) case of 10

Performance

Listings & Certifications

Certifications and Listings   Gilbarco® VaporVac®
CARB Initial Certification Date April 2000 July 2000
CARB Certification Number G-70-153* G-70-199** G-70-150* G-70-199**

* Latest version.

**Approval for 350ml liquid retention requirement.






Ordering Specifications

E-10: Nozzles compatible up to E10 (10% Ethanol)
Standard Hand Insulator Color 12VW New Unleaded, with Hold-open Rack 12VW with AdMaster™
Green 12VW-0100
Silver 12VW-0200
Red 12VW-0300
Black 12VW-0400 12VW-0400-AD
Blue 12VW-0500
Gold 12VW-0750
Yellow 12VW-0900
Bare 12VW-0000

Hand Insulator Color Options

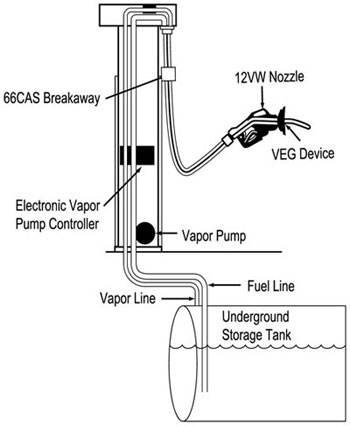

Typical Installation




Replacement Parts

Product Description Part#
Spout Kit Replacement aluminum unleaded spout with VEG 5VW-2000
ECD Kit Replacement ECD and hardware 3VW-0450

12VW Series Instruction Sheet Order Number: H15890PAE


OPW 6 Newgard™ Two-piece Hand Insulator

Ordering Specifications

Hand Insulator Color 12VW New Unleaded with Hold-Open Rack
Barrel (For 2-piece Style Hand Insulator) DO2141M
Green H13964M
Silver H14662M
Red H13942M
Black H13941M
Blue H14580M
Gold H14661M
Yellow H13943M

Note: Barrel and Hand Insulator sold separately.

Hand Insulator Color Options
